Crane Wheel Assembly

Wheel sets is composed by wheel pcs,wheel shaft,bearing, bearing box and other accessories. Wheel sets are mainly used on crane,transfer cart,ladle crane and other traveling mechanism.

Wheel sets are widely used, our wheel sets can be custom-designed based on customer requirement and drawings.Currently the wheel sets used on cranes are mainly include:Angle bearing box form wheel sets,circular bearing box wheel sets,non bolted joint bearing box form wheel sets. Wheel pcs adopt high quality forged steel, it's 42CrMo,AISI4140,41Cr4,A504,SSW-Q1R,65Mn,1045,1055,1060,1070, and cast iron 400,500,600,700 brands for customer's choice;Wheel shaft adopt high quality steel with material 45,40Cr,42CrMo;After quenching and tempering heat treatment process, the wheels and wheel shaft obtain the appropriate organization and achieve the desired strength, toughness and hardness, so that the products can get maximum performance;Bearing selected international brands like SKF, FAG, NTN, NSK, TMK, domestic brands like HRB, LYC, ZWZ etc and other high-quality bearings, to ensure the transmission efficiency and service life; Bearing box use 35#,45#, HT200, QT400 and other materials to ensure that the bearing box strength and carrying capacity. These guarantees DGCRANE brand wheel set of excellent quality

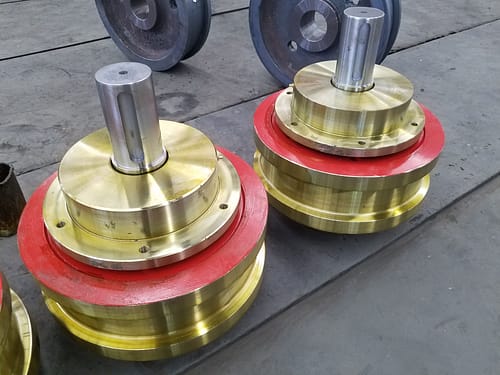

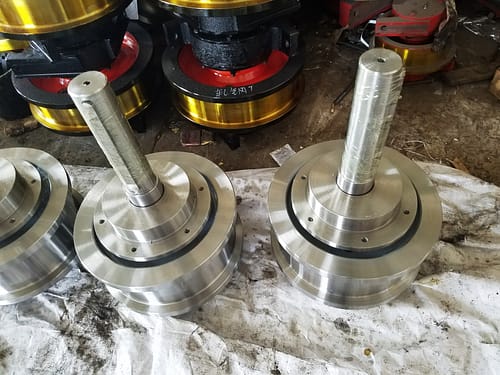

European type crane wheel assembly
European type crane wheel assembly

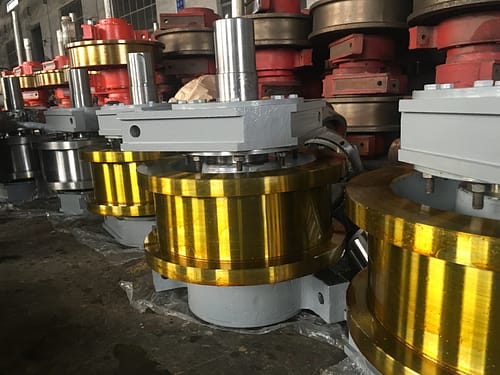

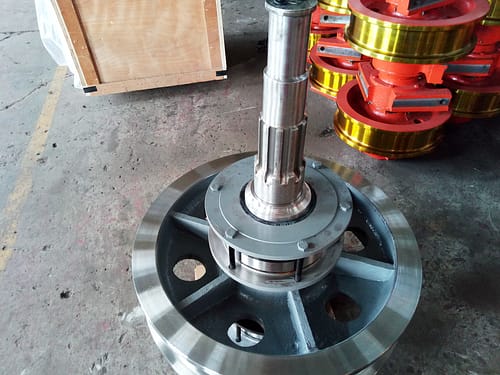

Crane Wheel Assembly

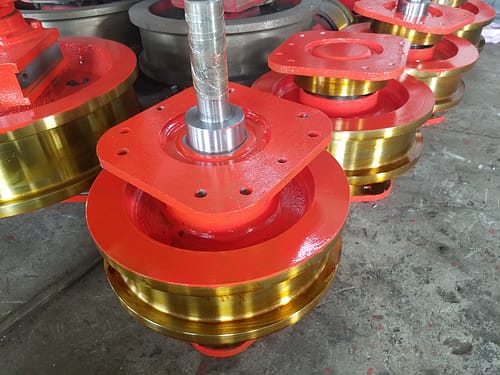

Crane Wheel Assembly
Crane Wheel Assembly

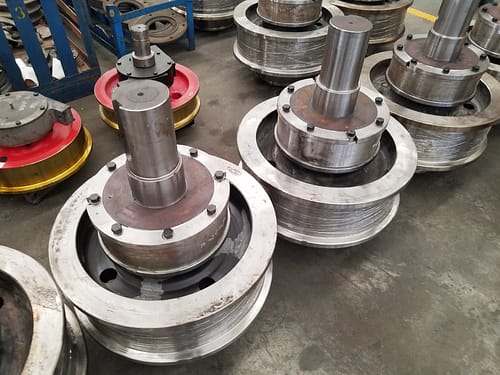

Circular bearing box crane wheel assembly

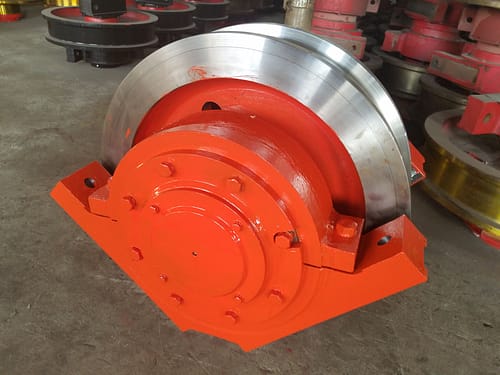

Heavy crane wheel assembly

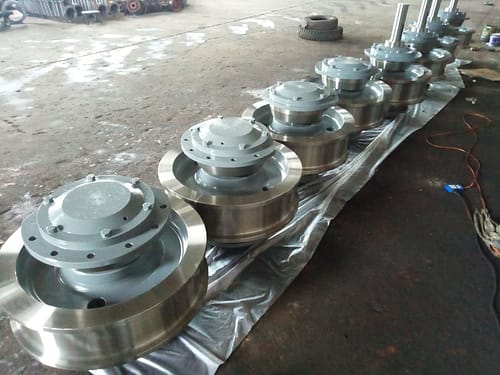

Heavy crane wheel assembly

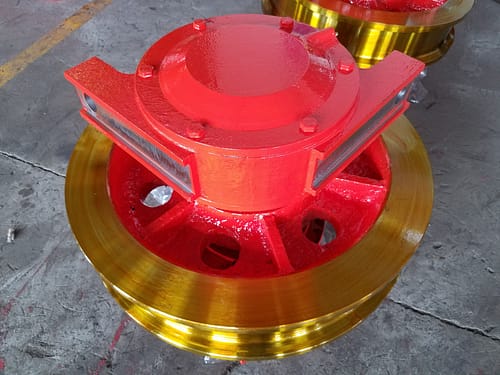

Crane Wheel Assembly Customization

Technical Parameters

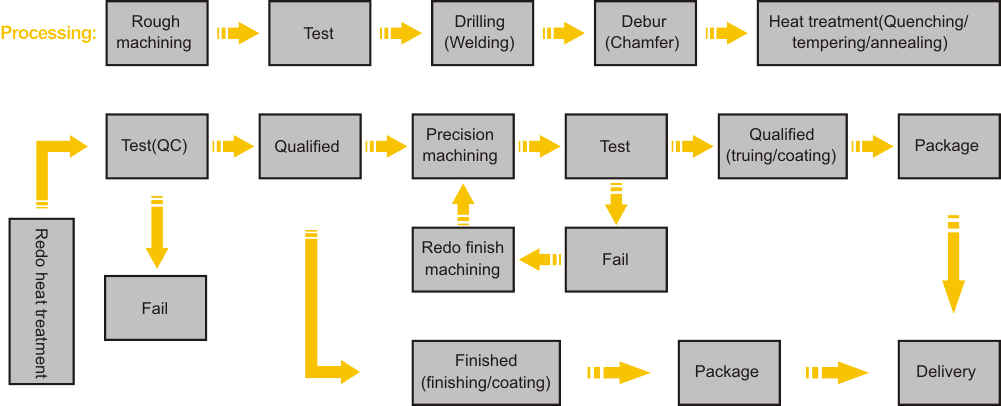

About Technology

step Machining


step Inspection


step Parts


step Aseembly


step Finished


step Packing



Key words: crane wheel assembly
