DRS Wheel Block System

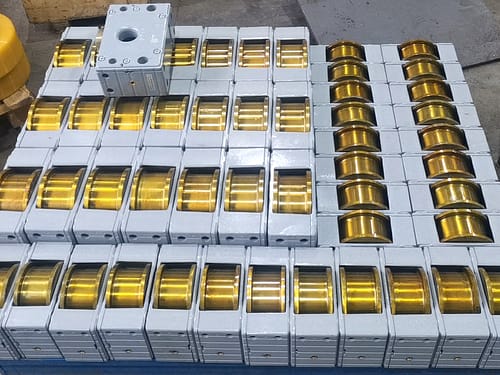

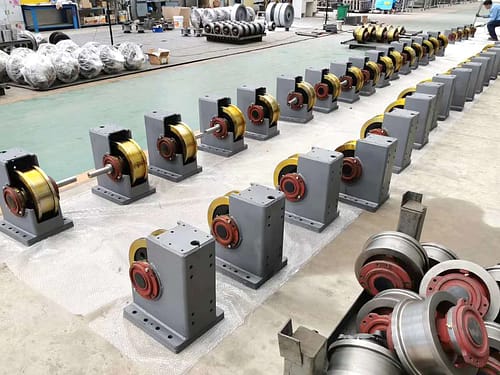

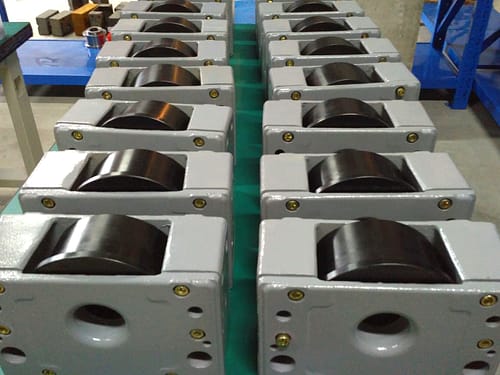

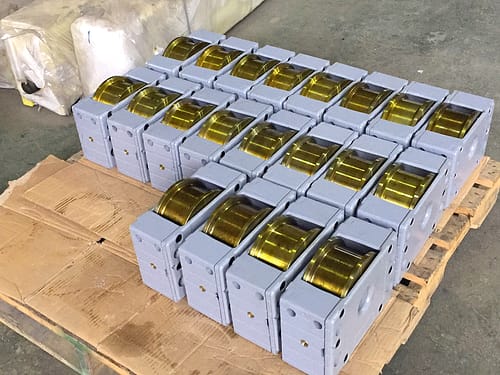

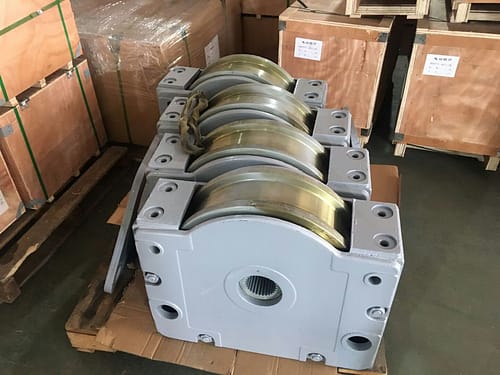

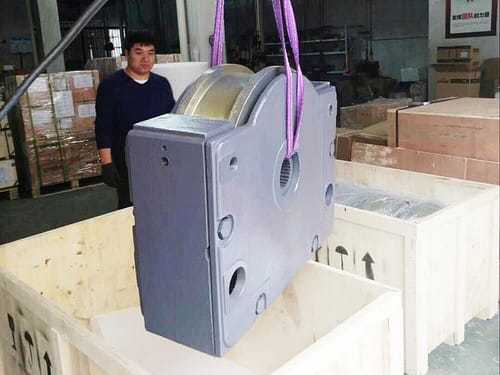

The DRS wheel block system

This versatile system provides optimum performance ratios for a maximum load capacity (from 2.75 to 40 t) with compact dimensions. Finely graded sizes (DRS 112 to DRS 500) ensure that the right unit is selected for the corresponding application.

Besides a wide variety of travel wheel types from the standard range, special designs are also available to meet customer requirements. The housing, which is machined on all sides, can be connected to virtually any customer design. Offset and angular geared motors from the Demag modular system are available for the driven variant as individual or central drive units.

In short, further strengths:

  • High performance range and maximum load capacity
  • Many travel wheel shapes as standard as well as customer-specific designs
  • 4 variants for connection to customer's superstructure
  • High-quality housing with optimum protection of the travel wheels and bearings
  • High rigidity
  • Direct connection of optional accessories
  • Laser alignment system for wheel blocks on multiple travel units
DRS
DRS Wheel Block System
DRS Wheel Block System
the wheel block system

Technical Parameters

drs-wheel-block

Application

DRS Wheel Block for onshore cable carousel

DRS Wheel Block for onshore cable carousel

DRS Wheel Block for Automobile revolving platform

Wheel block translation

DRS Wheel Block for Crane End Carriages

DRS Wheel Block for Crane End Carriages

DRS Wheel Block for Electric motor

DRS Wheel Block for Electric motor

DRS Wheel Block for Transfer cart

DRS Wheel Block for Transfer cart

DRS Wheel Block for Trolley

DRS Wheel Block for Trolley

Key words: DRS wheel block system
